| FEATURES |
Adapter kit for aluminum spinners
This steel adapter kit tightens the backplate & propeller onto the
engine, then using a single bolt-on design, holds & centers each
spinner perfectly on its baseplate.
Machined for accuracy
Includes aluminum bushing, prop washer and prop nut
This spinner adapter kit will fit the following engines:
-O.S. 20-40FP; .25-.46FX & SF
One year quality guarantee
Installation instructions provided on the header card

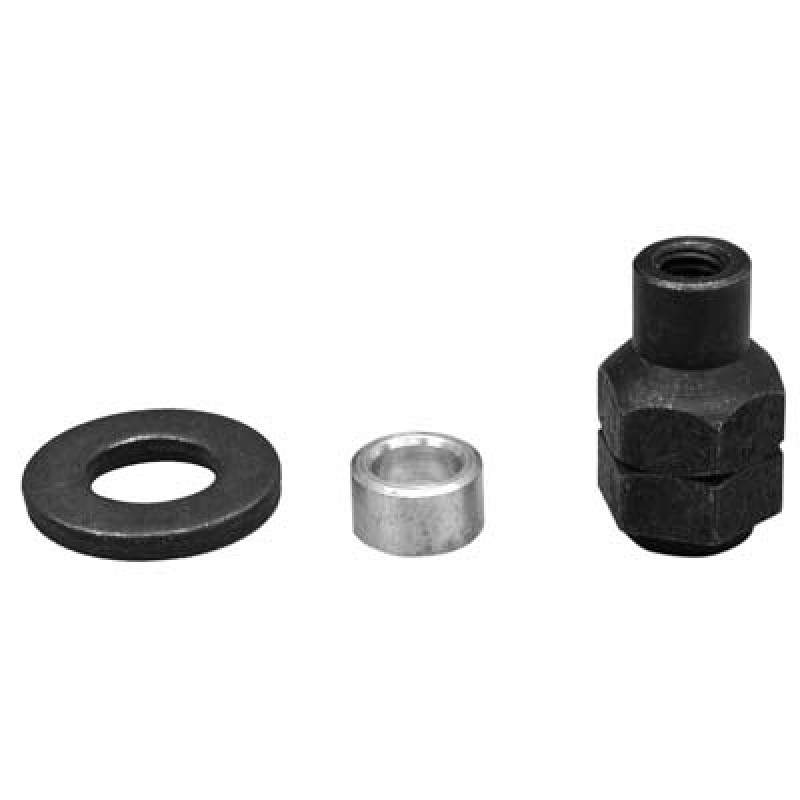

| INCLUDES |
(1) Propeller Nut
(1) Propeller Washer
(1) Aluminum Backplate Bushing
| REQUIREMENTS |
12mm Wrench To Tighten Propeller Nut
Aluminum Spinner w/Center Mounting Hole
10-32 Bolt
| SPECIFICATIONS |
Shaft Size: 1/4-28
Prop Nut Length: 13/16" (21mm)
Backplate Bushing Inner Diameter: 1/4"
Outer Diameter: 3/8"
There are no related hopups for this product.
There are no related parts for this product.
Adapter Kit O.S. .20-.40FP/.25-.46FX and SF by Great Planes SRP $18.84
- Brand: Great Planes
- Categories:
- - Prop Nut/Spinner Adaptor
- Product Code: GPMQ4581
- Availability: Please Order
