Model: XM4255EA-10

• SKU: 51861

• KV: 620

• Weight: 270g

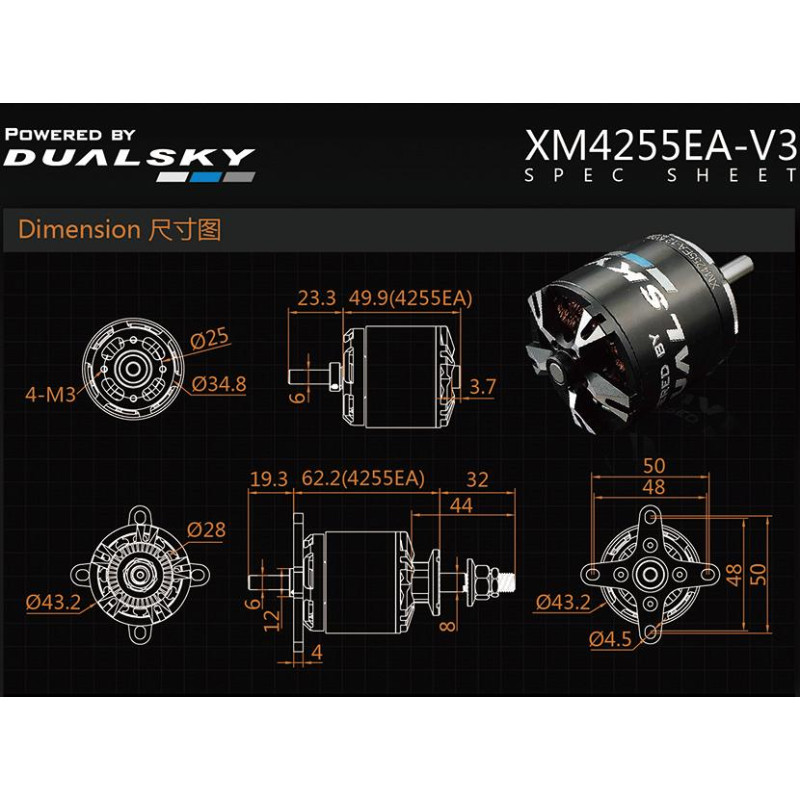

• Dimensions (D × L): 43.2 × 49.9 mm

• Shaft Diameter: 6.0 mm

• Mounting Hole Spec: 4-M3, 25/25 mm

• Input Connectors: DB4

• Stator Dimensions: 3525

• Slots & Poles: 12N14P

• Resistance (Ri): 16 mΩ

• No-load Current (Io@10V): 1.5A

• Cells (LiPo): 5–6S

• Efficiency Current: 31.0A

• Burst Current (15S): 62A

• Peak Power (15S): 1240W

• Peak Torque: 1.19 N·m

• Recommended ESC: SUMMIT 100

• Recommended Propeller:

  • 5S: 14×7E

  • 6S: 12×7E, 13×6E, 13×8E**

• Application: 55E, 35–.55 2-stroke, up to .60 4-stroke

**Good throttle management is required
