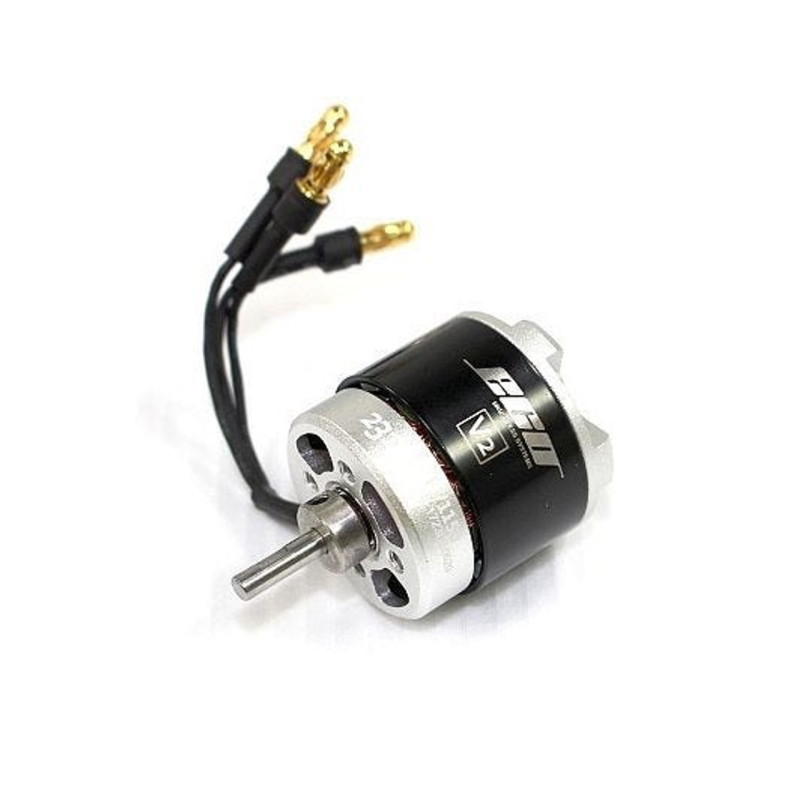

Specifications

• KV Rating: 150 KV

• Turns: 9.5

• Weight: 58g

• Dimensions (D x L): 28.8 x 28.9 mm

• Slots & Poles: 12N14P

• Internal Resistance (Ri): 90.8 mΩ

• No Load Current @10V (Io): 0.7 A

• Number of LiPo Cells: 2–3S

• Max. Efficiency Current: 14 A

• Max. Burst Current (15S): 23 A

• Max. Power (15S): 276 W

• Max. Torque: 0.23 N·m

• Shaft Diameter: 3.175 mm

• Mounting Hole Pitch: 16/16

• Input Connectors: GC3.5

• Recommended ESC: XC-12-LITE or XC1218BA

• Recommended Propellers:

  • 2S: 11x7E, 12×6E

  • 3S: 9×6E, 10×5E

• Application Class: 400 size 400–800g sport airplanes
