Simple, reliable, and budget-friendly - the Hobby Line is made for enthusiasts who want trusted Team Savox performance without overcomplicating their build. Whether you're upgrading a ready-to-run vehicle or assembling your first kit, these servos offer solid function at an accessible price.
Equipped with features like metal gears and smooth control response, Hobby Line servos are ideal for casual drivers, beginners, and weekend bashers. It's all about getting you driving with confidence – no stress, no fuss.
Full Specification
| Line | HOBBY LINE |
| Application | CAR |
| Servo Size | Mini |
| Operating Voltage | 4.8V-6.0V |
| Speed @4.8V | 0.19 s/60° |
| Torque @4.8V | 4.0 kg/cm |
| Speed @6.0V | 0.16 s/60° |
| Torque @6.0V | 5.0 kg/cm |
| Amplifier Type | Analog Controller |
| Motor Type | DC Motor |
| Case Type | Composite |
| Protection | Dust Resistant |

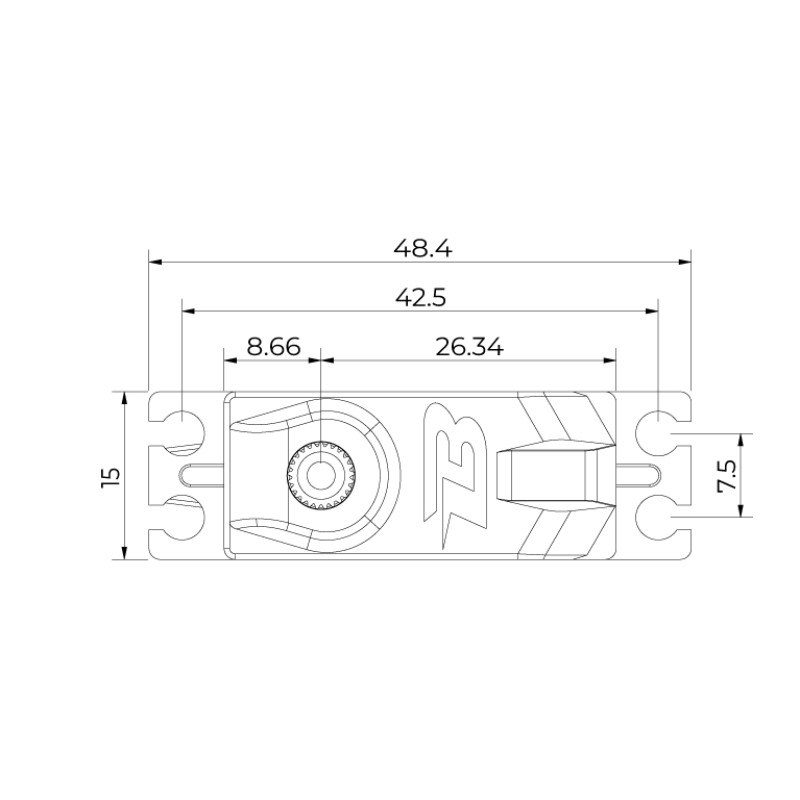

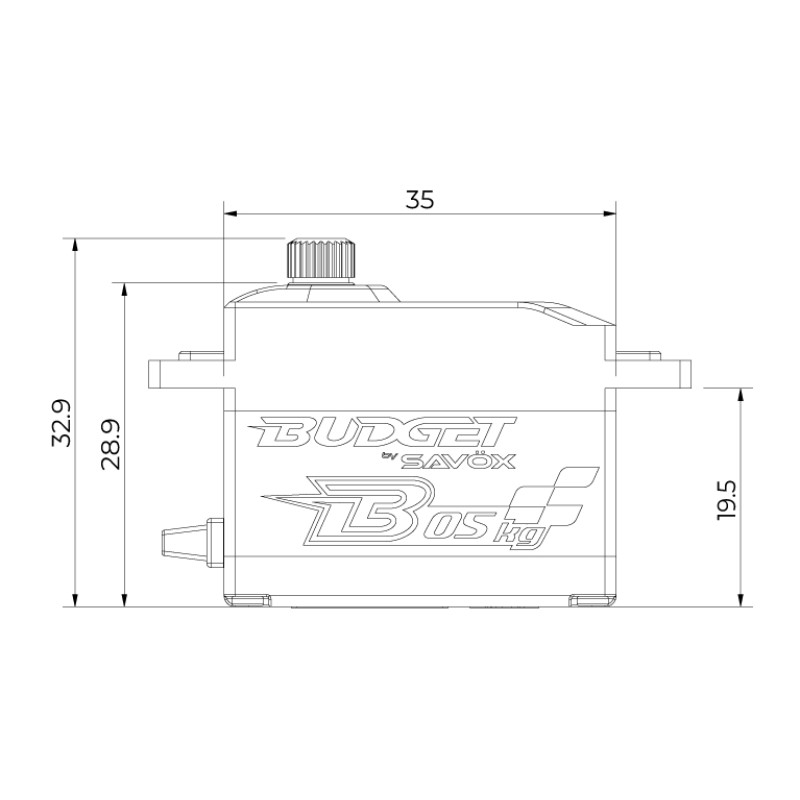

| Dimensions (L x W x H) | 35 x 15 x 28.9 mm |
| Weight | 25 g |

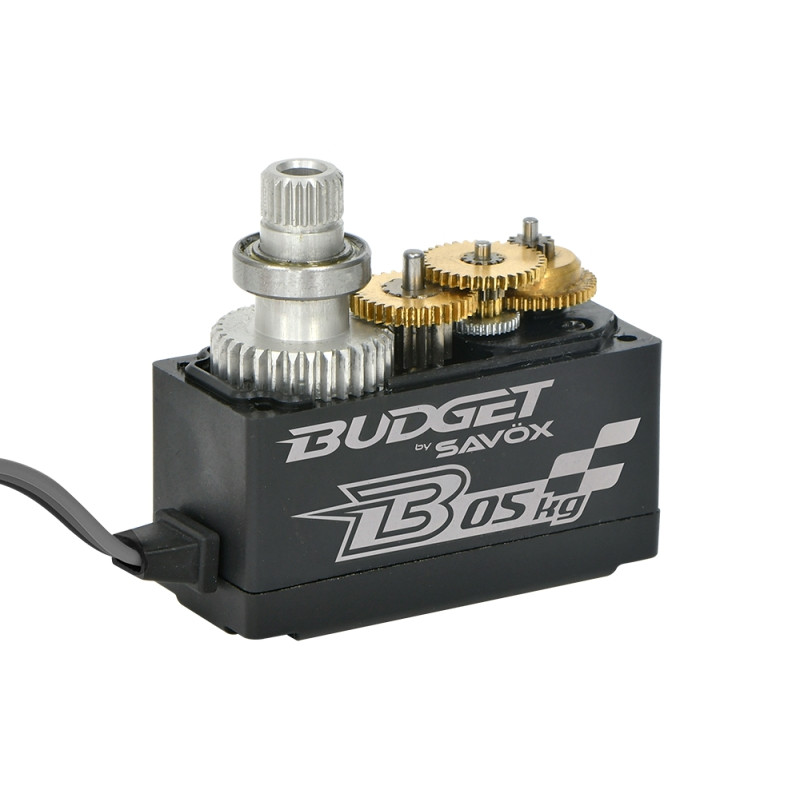

| Gear Type | Heavy-Duty Metal |
| Compatibility | Normal |
| PCB Board | UACB |
| Horn Gear Spline | 25T(Φ6) |
| Rotating Direction | Clockwise (when 1500→2000 µsec) |
| Max Travel | ~165° (when 700→2100 µsec) |
| Operating Travel | 100° (when 1000→2000 µsec) |
| Neutral Position | 1500 µsec |
| Bearing | 2x Ball Bearings |
| Potentiometer | Contact Type Variable Resistor |
| Cable Diameter | 26 AWG |
| Cable Length | 250 ±5 mm |
| Connector | JR Connector |
| Stall Current @4.8V | 1200 mA |
| Operating Current @4.8V | 220 mA |
| Stall Current @6.0V | 1800 mA |
| Operating Current @6.0V | 240 mA |
| Idle Current | 6 mA |
| Dead Band Width | 20 µsec |
| Frequency Range | 50 Hz |
| Control System | Pulse width modification |
| Operating Temperature | -10°C to 50°C |
There are no related hopups for this product.
There are no related parts for this product.
Savox Budget Metal Gear Mini Servo 5kg 0.16sec @6v 35x15x27.2mm 32g SRP $28.46
- Brand: Savox
- Categories:
- - Servo ALL
- - Savox Select
- Product Code: B-05KG
- Availability: Please Order
