| FEATURES |

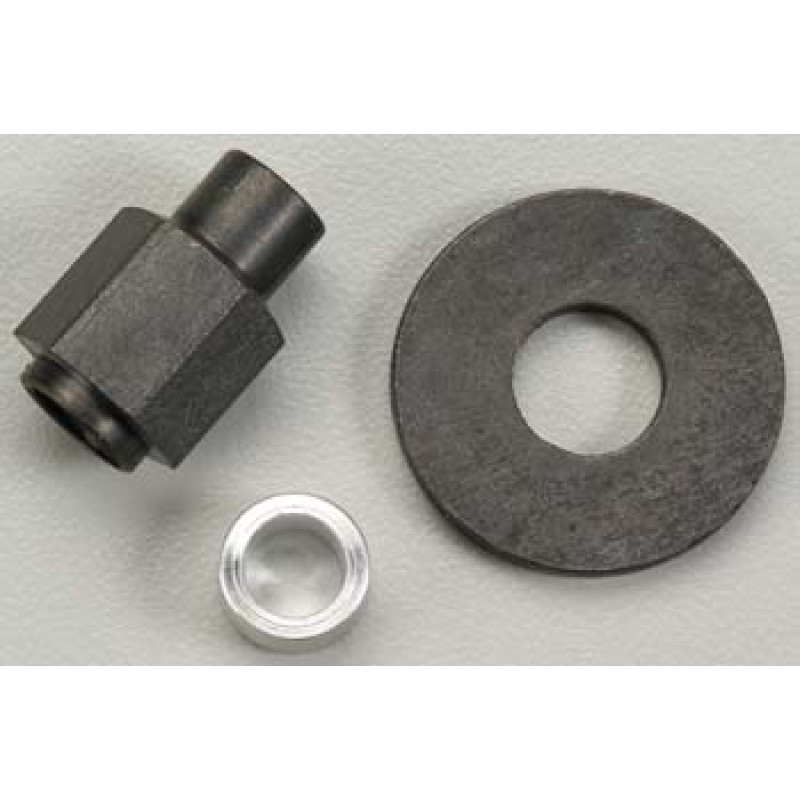

Adapter kit for aluminum spinners
This steel adapter kit tightens the backplate & propeller onto the
engine, then using a single bolt-on design, holds & centers each
spinner perfectly on its baseplate.
Machined for accuracy
Includes aluminum bushing, prop washer and prop nut
This spinner adapter kit will fit the following engines:
-O.S. .60FP
-O.S. .61 FX & .61 SF
-SuperTigre .61-.90
One year quality guarantee
Installation instructions provided on the header card
| INCLUDES |
(1) Propeller Nut
(1) Propeller Washer
(1) Aluminum Backplate Bushing
| REQUIREMENTS |
12mm Wrench To Tighten Propeller Nut
Aluminum Spinner w/Center Mounting Hole
10-32 Bolt
| SPECIFICATIONS |
Shaft Size: 5/16-24
Prop Nut Length: 15/16" (24mm)
Backplate Bushing Inner Diameter: 5/16"
Outer Diameter: 3/8"
There are no related hopups for this product.
There are no related parts for this product.
Adapter Kit O.S. .60FP/.61SF-FX/ST .61 by Great Planes SRP $18.84
- Brand: Great Planes
- Categories:
- - Prop Nut/Spinner Adaptor
- Product Code: GPMQ4584
- Availability: Please Order
