Overview
Upgrade your 250-450 size heli tail servo with the high speed and accurate H3065 Servo. Touting a blazing fast .029 transit speed and industry leading position accuracy and holding power, these are a great sub-micro size servo to upgrade many Blade Bind and Fly models and a perfect pair for many 250-450 size kit models requiring a sub-micro size servo form factor.
| Application: | 250 - 450 size heli, tail |
| Bearing: | Single |
| Bushing Or Bearing: | Bearing |
| Connector Type: | Universal |
| Connector Wire Gauge: | 22 AWG |
| Connector Wire Length: | 7.87" (200mm) |
| Deadband: | 2 |
| Gear Material: | Metal |
| Height: | 1.17" (29.6mm) |
| Length: | 0.91" (23mm) |
| Programmable: | No |
| Servo Operating Voltage: | 4.8-6.0V |
| Servo Type: | Digital |
| Speed: | 0.036 sec/60deg @ 4.8V, 0.029 sec/60deg 6V,0.029 sec/60° @ 6.0V |
| Torque: | 15.75 oz-in (1.1kg-cm) @ 6.0V, |
| Type: | Digital sub micro |
| Weight: | 0.46 oz (12.9 g) |
| Width: | 0.47" (12mm) |
There are no related hopups for this product.
There are no related parts for this product.

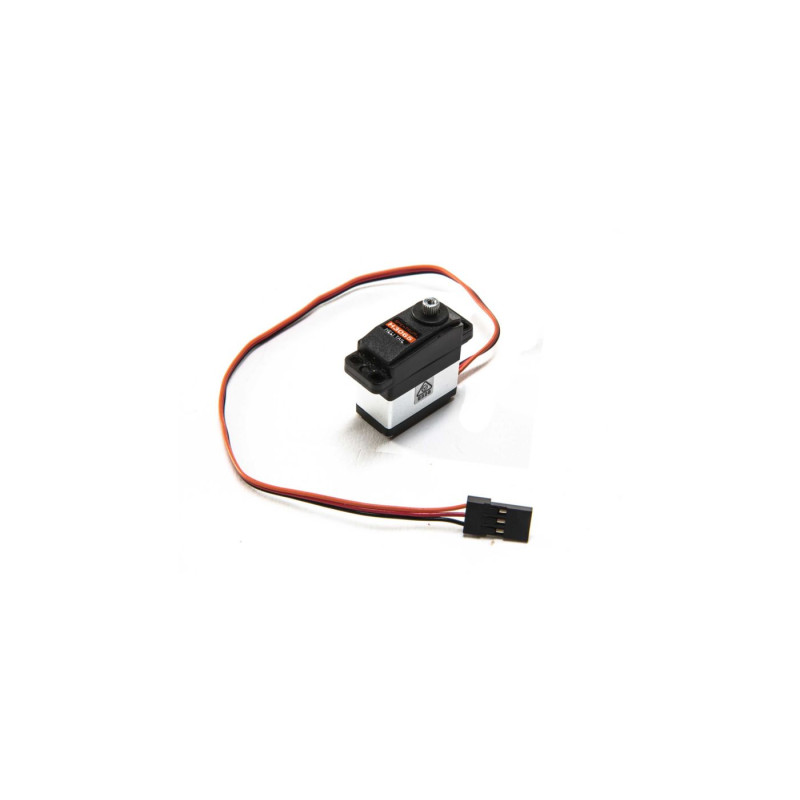

H3065 Mid-Torque Ultra-Speed Micro Heli Tail Servo by Spektrum
- Brand: Spektrum
- Categories:
- - Micro/Mini Servos
- - Servo ALL
- - Blade Fusion 360 Smart Parts
- Product Code: SPMSH3065
- Availability: Please Order
