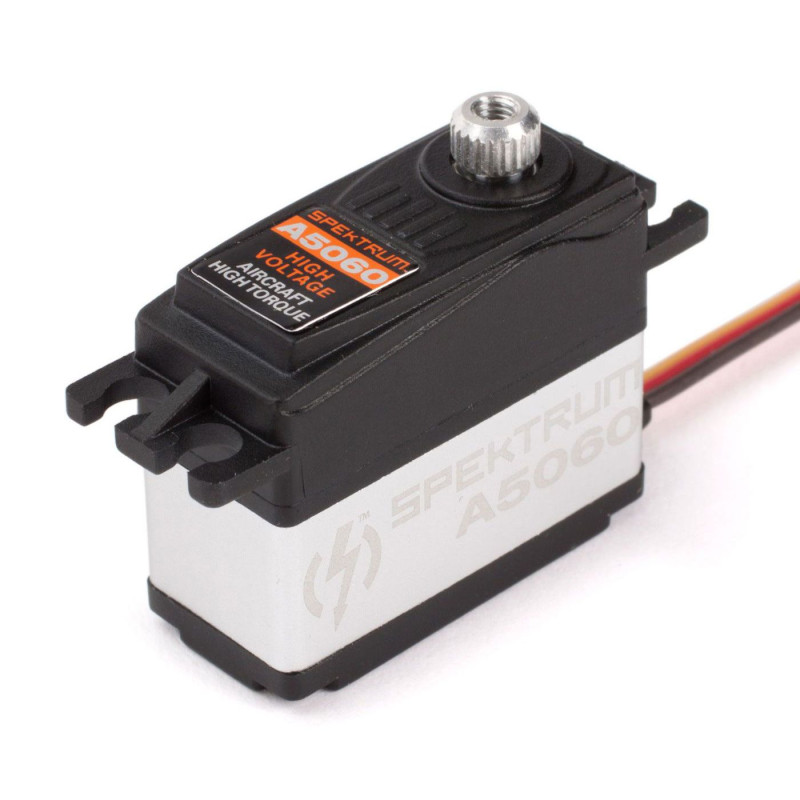

A5060 Mini HV Digital Hi-Torque MG Aircraft Servo 8.5kg 0.11sec

Features

• HV compatible
• 118 oz-in of torque and a transit speed of .11 sec/60° at 8.4V offers impressive performance for a mini servo
• Metal gear train for robust and rugged performance
• Aluminum center section case doubles as a heat sink to keep the motor cool which increases performance and life of the servo, and adds high end look and feel.

Size Category: Minis and Micros
Type: Digital
Application: 25- to 32-size aircraft
Torque: 87 oz-in (6.3 kg-cm) @ 6.0V; 118 oz-in (8.5 kg-cm) @ 8.4V
Speed: 0.15 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 8.4V
Length: 1.30 in (32.8mm)
Width: 0.58 in (13.7mm)
Height: 1.10 in (27.4mm)
Weight: 0.92 oz (26 g)
Bushing Or Bearing: Bearing
Bearing: Dual
Motor Type: Coreless
Connector Type: Universal
Gear Type: Metal
Voltage: 6.0 - 8.4V (High Voltage)
