Product Details

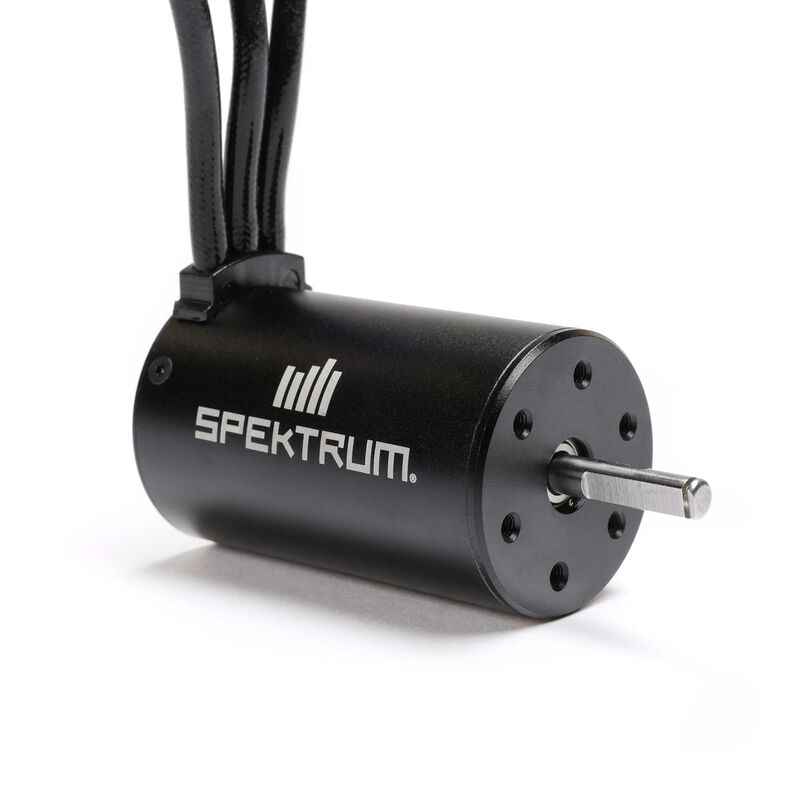

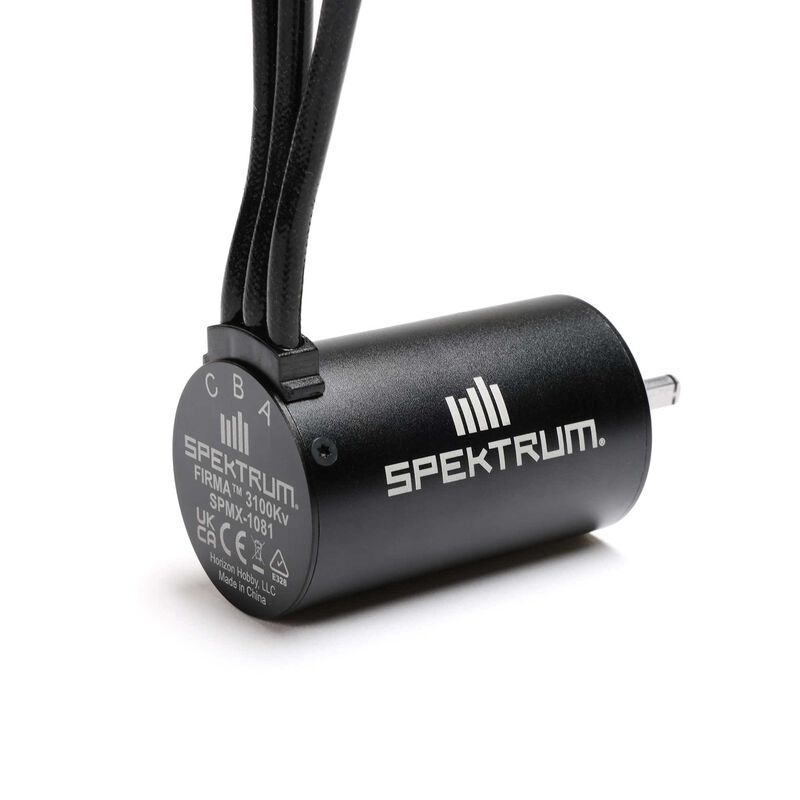

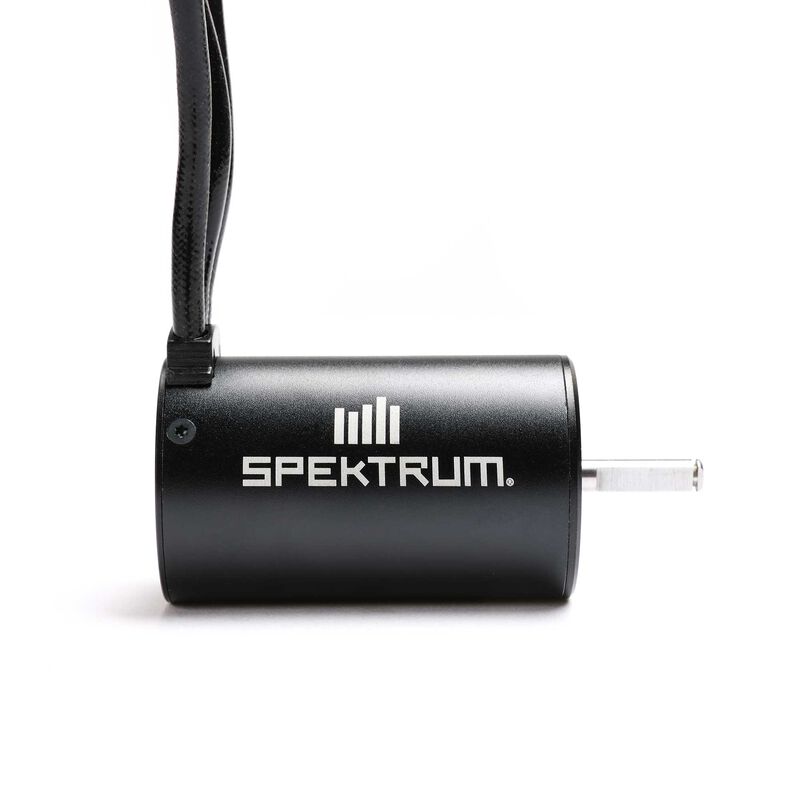

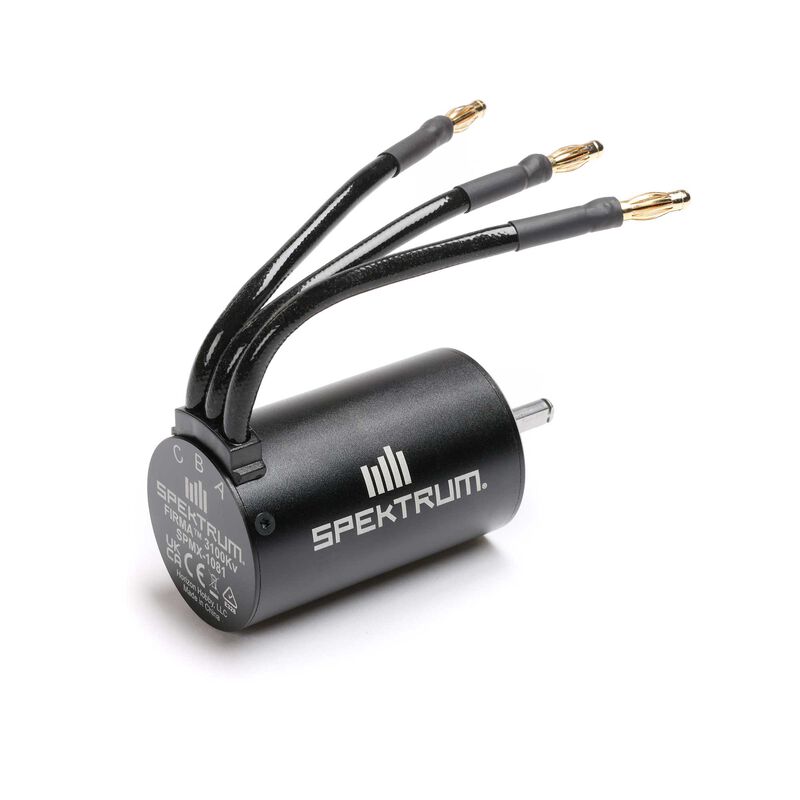

The Spektrum™ Firma™ 3100Kv Sensorless Brushless Motor is designed specifically for the ARRMA® TYPHON™ 4X4 3S BLX 1/8th SMART Buggy running a 2S-3S LiPo. It features a low-cog 4-pole rotor, CNC machined aluminum housing, insulated high-purity copper windings, a high-quality alloy steel 5mm output shaft, and precision bearings for durability and smooth rotation. It is perfectly matched for the Spektrum SLT 80 Amp Brushless ESC/Receiver.
Key Features
- 2S-3S LiPo power capable
- High-efficiency design
- Low-cog 4-pole sintered rotor
- Precision ball bearings and hardened steel 5mm output shaft
In The Box
- (1) Firma 3660-3100Kv 4-Pole Sensorless Brushless Motor
Product Specifications
| Connector Type | 5mm Bullet |
| Connector Wire Length | 3.74" (95 mm) |
| Input Voltage | 2S – 3S |
| Motor Type | Brushless |
| Number of Poles | 4 |
| Product Length | 2.36" (60 mm) |
| Product Weight | 245g |
| RPM/Volt (Kv) | 3100Kv |
| Sensored | No |
| Shaft Diameter | 0.19" (5 mm) |
| Shaft Length | 0.76" (19.3 mm) |
There are no related hopups for this product.
There are no related parts for this product.
Firma 3660 3100Kv 4 Pole Sensorless Brushless Motor: 5mm by Spektrum SRP $168.07
- Brand: Spektrum
- Categories:
- - Arrma 1/10 VORTEKS 223S BLX Parts
- - Arrma 1/8 TYPHON 223S BLX Parts
- - Arrma 1/10 GRANITE 223S V4 Parts
- Product Code: SPMX-1081
- Availability: Please Order
